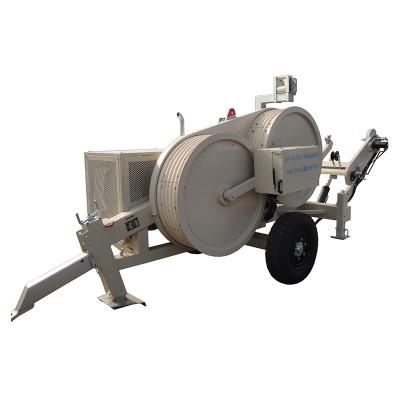

SA-YQZ Series Hydraulic Puller-Tensioner

Item number		07223	07224	07228
Model		SA-YQZ40C	SA-YQZ40D	SA-YQZ60
Max .pull/tension(kN)		40/40	40/40	60/60
Continuous pull /tension(kN)		35/35	35/35	55/55
Max .pulling/releasing speed (km/h)		5/5	5/5	5/5
Bull wheel bottom of groove diameter(mm)		Φ1200	Φ1200	Φ1500
Bull wheel grooves number		5	5	6
Max .suitable rope diameter (mm)		Φ32	Φ32	Φ40
Reel winder		Available	Not available	Available
Engine	Power (kW)	51	60	82.5
	Speed (rpm)	2500	2200	2500
Dimensions (mm)		4170×1850×2400	3600×1850×2400	5520×1890×2400
Weight (kg )		3600	3200	4800

• Uses
• works equally well for both pulling and tensioning conductors ,ideal for re-conductoring on existing power lines .
• Feature
• Bull wheel with wearproof MC nylon lining segment
• Closed hydraulic circuit and bi-directional variant plunger pump .infinitely variable pull/tension control
• Rexroth pump and motor, Italian RR reducer
• Spring applied hydraulic released brake, overload protection is on the safe side and easy operation.
• There is a hydraulic circuit for drive ,matched reel stand DW2240 A
• Main component
• Main hydraulic valve :Rexroth .
• Radiator :AKG
• Hydraulic instrument :WIKA
• Matched reel:GSP1400,item number:07125C
