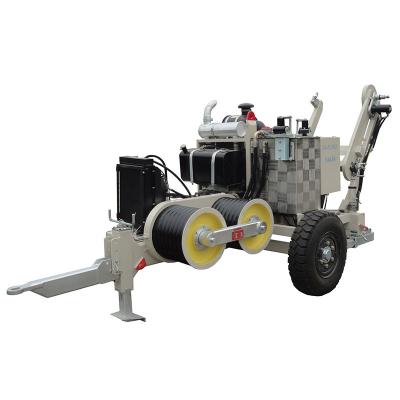

SA-YQ60 Hydraulic Puller

• Essential parameter
• Maximum pull force (kN):60
• Continuous pull force (kN):50
• Maximum speed (km/h):5
• Bull wheel bottom of groove diameter(mm):Φ460
• Bull wheel grooves number : 7
• Maximum suitable steel rope diameter (mm): Φ18
• Maximum through connector diameter (mm): Φ60
• Engine power /speed (kW/rpm):77/2800
• Dimensions (mm):3800×2100×2300
• Weight (kg): 3000

• Feature
• Infinitely variable speed and pull force control ,the pull in the rope can be read on the line pull gauge .
• The max pull for conductor–stringing operation can preset ,automatic overload protection system .
• Spring applied –hydraulic release brake acts automatically in case of hydraulic failure ensure to safety .
• Attached reel winder with automatically level wind ,load and unload conveniently

• Main component
• Engine : Cummins water cooled diesel engine.
• Main variable pump and main motor :Rexroth (BOSCH)
• Reducer :RR (Italian)
• Main hydraulic valve : Rexroth (BOSCH)
• Matched reel:GSP1400 ,Item number :07125C
