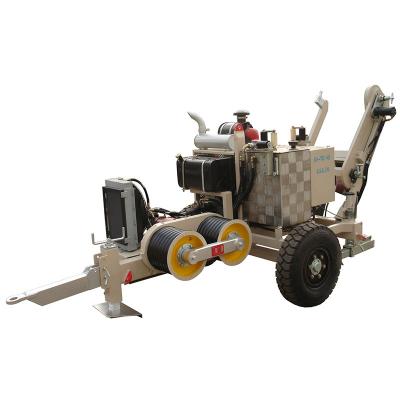

SA-YQ40 Hydraulic Puller

• Essential parameter
• Maximum pull force (kN):40
• Continuous pull force (kN):35
• Maximum speed (km/h):5
• Bull wheel bottom of groove diameter(mm) : Φ400
• Bull wheel grooves number : 7
• Maximum suitable steel rope diameter (mm): Φ16
• Maximum through connector diameter (mm): Φ50
• Engine power /speed (kW/rpm):60/2200
• Dimensions (mm):3500×2000×2300
• Weight (kg): 2500

• Feature
• Infinitely variable speed and pull force control ,the pull in the rope can be read on the line pull gauge .
• The max pull for conductor –stringing operation can preset ,automatic overload protection system .
• Spring applied –hydraulic release brake acts automatically in case of hydraulic failure ensure to safety .
• Attached reel winder with automatically level wind ,load and unload conveniently .

• Main component
• Engine : Cummins water cooled diesel engine.
• Main variable pump and main motor :Rexroth (BOSCH)
• Reducer :RR (Italian)
• Main hydraulic valve : Rexroth (BOSCH)
• Matched reel:GSP1400 ,Item number :07125C
